Oписание продукта

RM1641845738473275

500mm Multi-Rotor Air Frame Full Kit S500-PCB DIY GPS Drone APM2.8 Flysky 2.4G FS-i6 Transmitter Motor ESC

aeProduct.getSubject()

500mm Multi-Rotor Air Frame Kit S500-PCB:

aeProduct.getSubject()

Features:

- Wheelbase: 500mm
- F450 upgrade quadcopter
- Learned arm design from DJI S800 EVO
- High strength plastic material, stable and reliable
- Color: Black and Blue
aeProduct.getSubject()

Features:

- Arduino Compatible!
- Can be ordered with top entry pins for attaching connectors vertically, or as side entry pins to slide your connectors in to either end horizontally
- Includes 3-axis gyro, accelerometer and magnetometer, along with a high-performance barometer
- Onboard 4 MegaByte Dataflash chip for automatic datalogging
- Optional off-board GPS, uBlox LEA-6H module with Compass.
- One of the first open source autopilot systems to use Invensense\'s 6 DoF Accelerometer/Gyro MPU-6000.
- Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties.
- Atmel\'s ATMEGA2560 and ATMEGA32U-2 chips for processing and usb functions respectively.
aeProduct.getSubject()
6M GPS with Compass L5883 25cm Cable:
aeProduct.getSubject()
GPS Features:
- Built-in compass GPS module
- Main chip: 6M
- With fast satellite searching speed and high precision
- Compatible with APM serial port and I2C port
- Includes round plastic shell
- Pre-configured, Flashed with the correct settings, and tested
- Super Bright LED,BlackPlane with Standard Mk style mounting holes 45mm X 45mm
- Cable included
- With L5883 compass Cable length in 25CM
- Dimensions: 53.5*53.5*15.5
- Weight: 30g
- Quantity:1 Piece

Description:
C/A code,1.023MHz
Receiver Frequency:L1 [1575.42MHz]
Locate performance
2D :3m(Average)
2D:2m(average),with WAAS
drifting<0.02m>
accuracy:1us
coordinate system:WGS84
max attitude height:18000
Max speed:515m/s
Specification:
tracking sensitivity:161dBm
Capture sensitivity:148dBm
cold start time:38s average
Warm start time:35s average
hot start time:1s average
Capture time:0.1s Average
Temperature:40 centi grade to +80 centi grade
wide power supply voltage:+3.5V~+5.5V
aeProduct.getSubject()
aeProduct.getSubject()



Flysky FS-i6 6CH 2.4G AFHDS 2A LCD Transmitter iA6 +Receiver:
aeProduct.getSubject()

aeProduct.getSubject()
Description:
The Flysky FS-i6 is a affordable, 6CH 2.4G radio system and also a very simple setup for your RC vehicle. The automatic frequency hopping digital system provides a strong, reliable 2.4GHz signal, so rest assured you\'ll always be in control. Included in the package is a 6-channel mini receiver that will fit in most vehicles. The ergonomic feel of the trasnsmitter will feel good in your hands even after long track sessions.

Features:
Reliable, interference free 2.4GHz AFHDS 2A signal operation.
6CH operation.
Use only 4 * AA batteries for transmitter.
Quick and extremely stable in performance.
Simple binding procedure.
Highlights:
Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.Silm design on transmitter for easy handling!
This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission
Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.
This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.
AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.
AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.

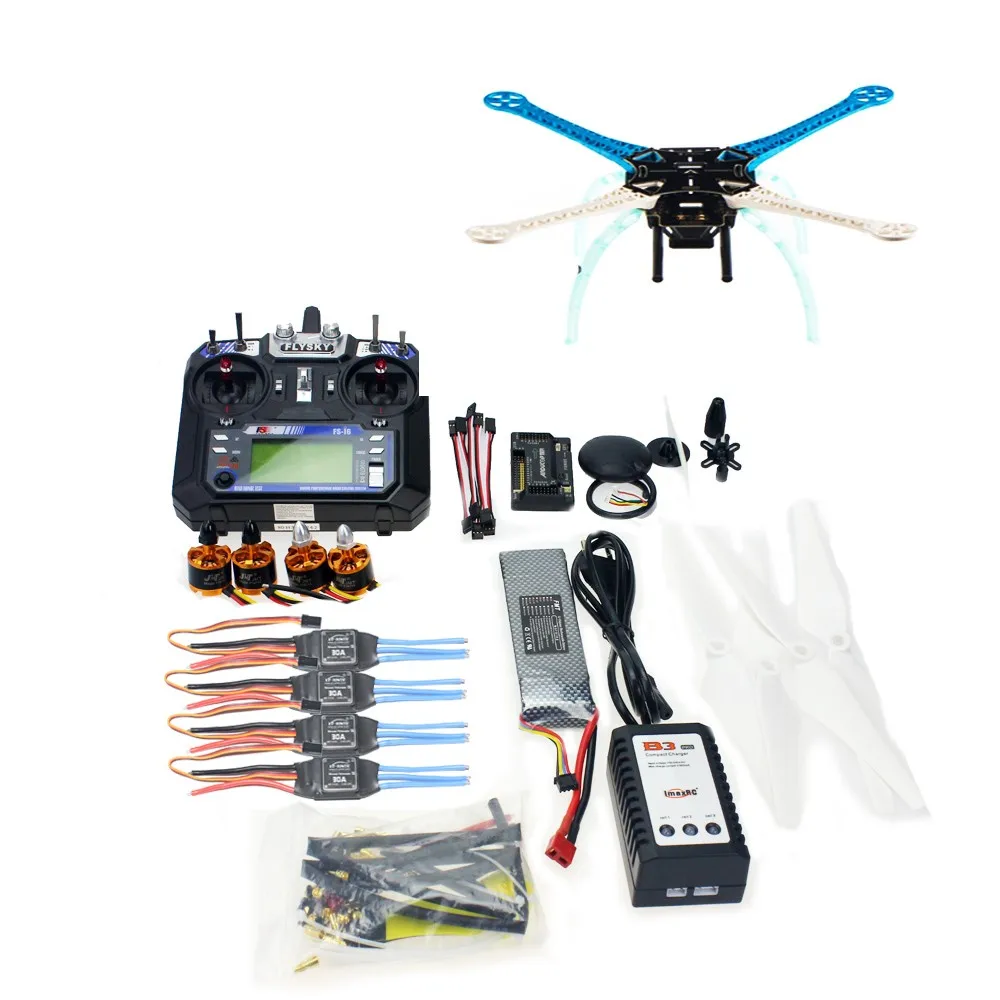

Package listing:

500mm Multi-Rotor Air Frame Kit S500-PCB*  1

D2212-920KV High Quality Brushless Outrunner Motor*4 (CW*2&CCW*2)
30A Brushless ESC Speed Controller*4
9443 CW CCW propeller *2
Universal GPS Folding Antenna Mount Holder Metal  *
6M GPS with Compass L5883 25cm Cable  *
 APM 2.8 Multicopter Flight Controller 2.5 2.6 Upgraded Built-in  Compass *
Flysky FS-i6 6CH 2.4G AFHDS 2A LCD Transmitter iA6 +Receiver *
FMT 11.1V 3300Mah 25C lipo battery *
RC B3 Pro Compact Balance Charger *  1
5 pcs 10cm Servo Extension Lead Wire Cable *
tool set*  1
