Oписание продукта

Video Wall Processor TV LCD Monitor Wall Controller Multi Input HDMI Ouput Screen segmentation & reassembly 2x2, 1x2, 1x3, 1x4

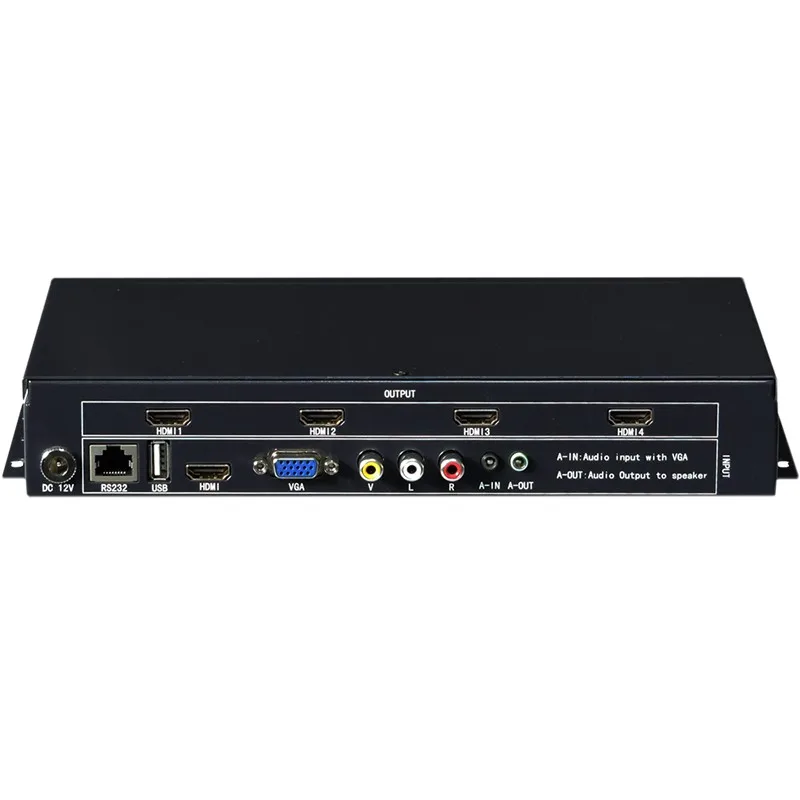

  This video wall controller is for LCD TV, ultra narrow side LCD monitor, projector and so on. With high-definition video processor, users can customized the output according to the number of monitors and the way they are installed. Products with 1 composite video, 1 VGA, 1 USB, 1 HDMI input and 4 HDMI output. The video resolution can be up to 1920*1080.

  Product comes with infrared remote controller, users can set and control the video processor easily through the remote controller, and press button or RS232 serial protocol.

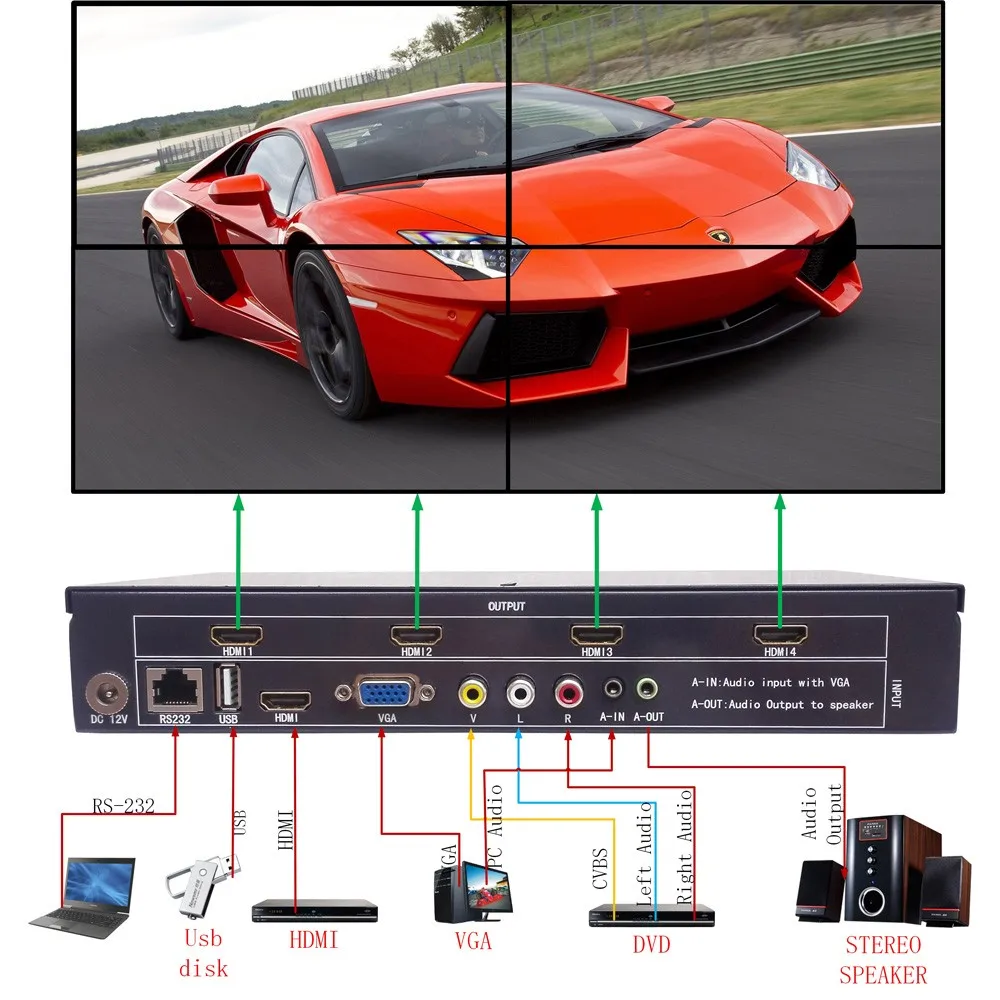

Working Diagram

TK-TV22-HD-Video-wall-controller-for-4-unit-2x2-LCD-TV-wall-processor-resolution-upHTB1jPlPLXXXXXXdXpXXq6xXFXXXGVideo-Wall-Controller-HDMI-VGA-AV-USB-Processor-2x2-Four-images-stitching-image-processor-4-TV

  • Installation

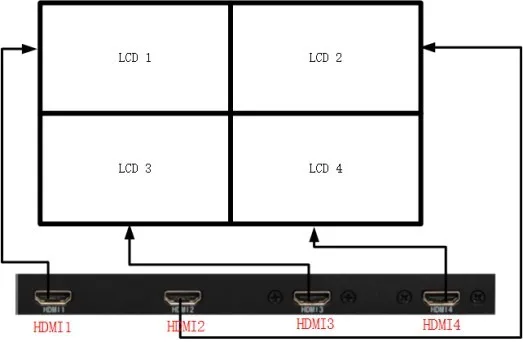

  1.  Connection the deive and monitors accordking to the bellow pic1234

  2. Plug input (USB, HDMI, VGA, RCA)

  3. Plug audio output if neccessary

  4. Power on



Setting

1. Select video source untill there is image out.

2. Press \'menu\' to enter OSD menu and set according to the user\'s manual.

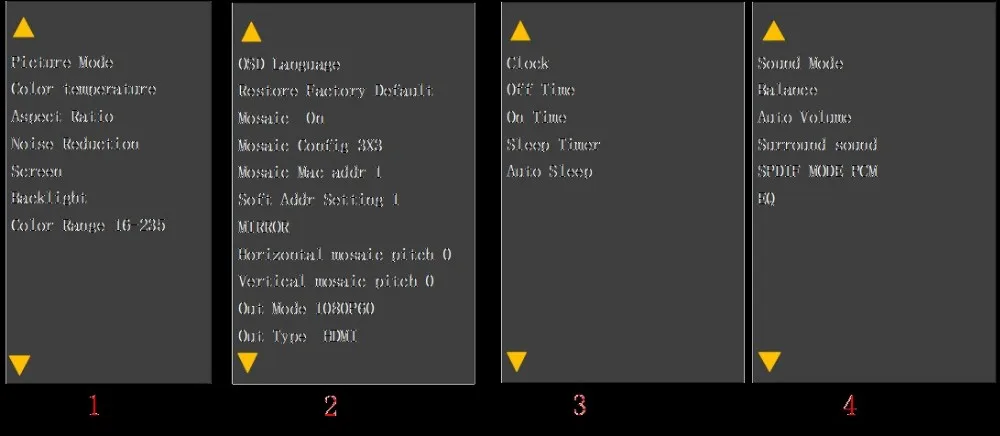

menu

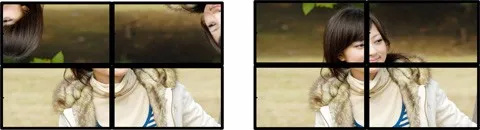

Mirror conrrection

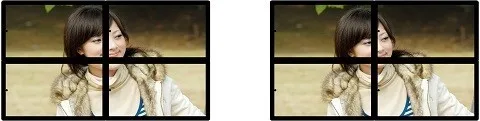

Bezel correction:

bezel

Specification:
