7 Color TFT LCD Screen Video Door Phone System Wired Visual Dual way Intercom Night Vision Doorbell For Home Apartment F3368B

7 Color TFT LCD Screen Video Door Phone System Wired Visual Dual way Intercom Night Vision Doorbell For Home Apartment F3368B
  • Продавецnewyorkjetsvsmiamidolphins.us
  • Список ценUS $69.99piece
  • Продажная ценаUS $69.99piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,2 (783)

Oписание продукта



WIRED 7" TFT LCD HOME VIDEO INTERCOM SYSTEM
700 TVL Camera, Clearer Video!
Unlock Via Password, Remote control, ID keyfobs and screen!

3724-main





This full Hard-wired Video Door phone Intercom System consists ofone 7\'\' color TFT monitor,  one door camera, 5 RFID keyfobs, a push release button,  a remote control , a e-lock and a power supply. Upgraded chips are adopted for highly stable performance and it has a nice appearance. It is your perfect choice to use in villas with 700 lines CMOS camera,which can achievemonitoring, dual-way intercom and unlocking. You also can monitor outside image even without people pressing the Monitor button on the Indoor unit.

This new released outdoor unit has a code keypad, it supports to unlock via password or RFID card, very convenient to unlock. Besides, it is fully waterproof, supports outdoor working. with 6 LED for night vision.

Features

  • 7" TFT digital color LCD;
  • 16 melodies for ringing selection;
  • Show outdoor image manually.
  • Dual-way intercom;
  • Supports communication between two indoor monitors.
  • Monitor unlock control;
  • Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking remote controlling etc.
  • TFT color screen with low power consumption, no radiation and high definition Resolution: 800*480.
  • Hands-free intercommunication.

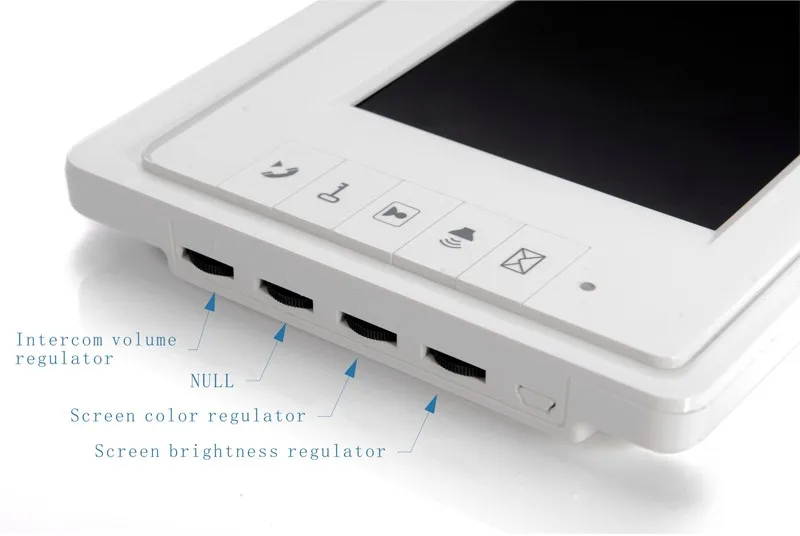

  • Brightness, chroma and volume adjustable
  • Ring cancel function, do not disturb mode.
  • Comes with 5 RFID keyfobs, a push release button switch.
  • Support maximum 500 rfid keyfobs
  • Supports one password, you can unlock via code or RFID card
  • Fully waterpoof, support outdoor working.
  • With micro-processing technology, auto-remote control, excellent performance and high Reliability.
  • This system supports 4(optional) and 4 outdoor cameras at most.(It needs a controller when install 2/3/4 outdoor cameras, please contact us if you want to install 2/3/4 cameras)

Details

It is a door phone which can show you what is going on outside doors on a clearly 7" full color screen of which The Volume, brightness and chroma can be adjusted to meet your need. It can function as a monitor, Press the button of Response/Monitoring, the screen will show you the picture outside doors, which makes you kown the outside world staying in the house.

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

aeProduct.getSubject()

V70F-ad 1IDS-S-main-2

aeProduct.getSubject()aeProduct.getSubject()

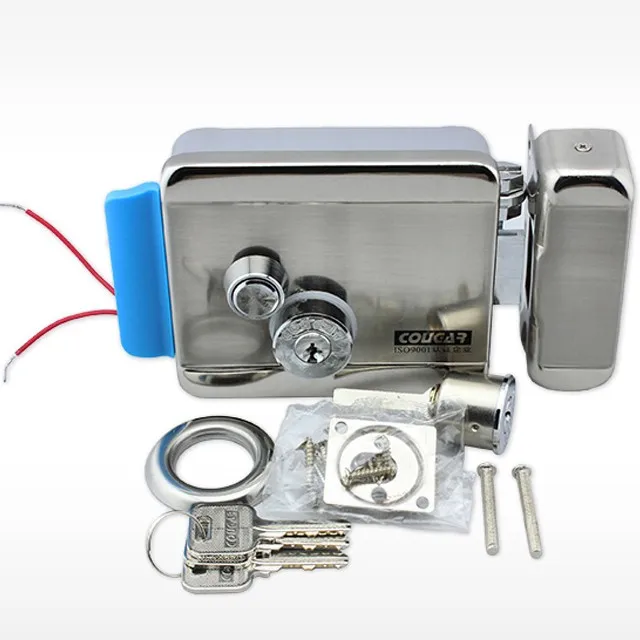

Electric Control Lock

This is a 12V Electric Lock Rim lock, unlock electronically or by hand, flexible switch, low electricity consumption. This Door Locks fit for different kinds of doors. When bolt extends out, the door can be locked normally.




aeProduct.getSubject()

  • NO Mode - (Locked while power is off);
  • Material: Stainless Steel;
  • Authority Certification: CE & MA Approved
  • Application: wood/iron doors;

  • Working Voltage: 12VDC

  • Working Current: 0.2-0.45A

  • Weight: 1500g;

  • Dimension (Face Plate): 120mm x 105mm x 35mm

  • Center distance: 60mm

  • Door distance: 35-55mm











Remote Control

when you want to go out, you just need to click this Remote control, then you can go out:



aeProduct.getSubject()

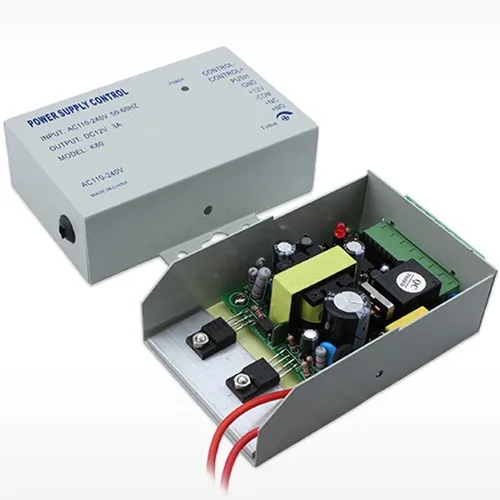

Power supply


This is a 110V-260V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.



  • It controls electric lock directly.

  • Can reduce the load of access controller, save wiring to reduce the hidden trouble

  • Based delay control circuit, lock time can be in 0-15 seconds

  • Automatic protection function, unexpected situations such as when the power supply
  • short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off

  • Operative device: E/M Lock, Access Controller, Exit Push Button.
aeProduct.getSubject()





Application

Wiring



Note:

  • We provide 4-core or 5-core or 6-cables.(please see the packaging contents.)
  • The cables are very easy to be found in your local market as they are international standard.
  • We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
  • The total length of the connection cables can NOT exceed 100 meters.
  • If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.
      0.2mm2 0.5mm2 1.0mm2
    Indoor to outdoor max distance30m50m100m
    Indoor to indoor max distance20m50m100m
    Outdoor to Electric lock max distance2m3m 5m





Specification





Indoor Monitor
LCD Screen 7" TFT
Resolution800x480
Calling durationAbout 120 seconds
Monitor durationAbout 60 seconds
Power Consumption Working: 9W; Standby: 2W
Adapter Input AC 100-240V, 0.6A, 50/60Hz
Adapter Output DC 15V, 2000mA
Working Temperature -35 ~ 50 Celsius
InstallationWall mounting
MaterialPMMA and ABS

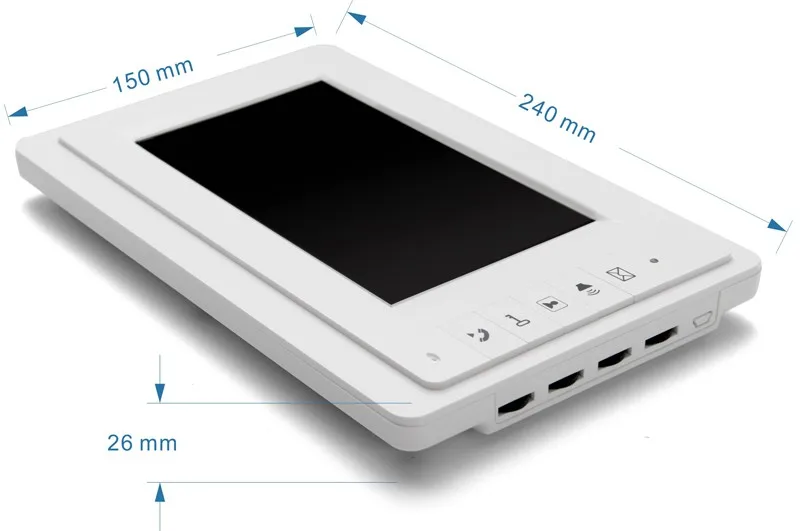

Size 240(L) * 150(W) * 26(H)mm
Net Weight500g
Outdoor Camera
Camera LensCMOS
Resolution700TVL
illumination 0LUX / F1.2
Night VisionVisible within 3m
Power Supply DC 15V, 0.5A
Working Temperature -35 ~ 50 Celsius
Case Alunimum panels, ABS rainproof
Installation Surface mounting
Size 180(L) *98(W) * 45(H)mm
Net Weight400g
